Razor Barbed Wire
|
Introduction
|
|
Razor barbed wire is composed of blade and core wire. The blade is made of galvanized steel sheet or stainless steel sheet, which is punched into blade shape. And the core wire is high tension galvanized iron wire, or stainless steel wire.

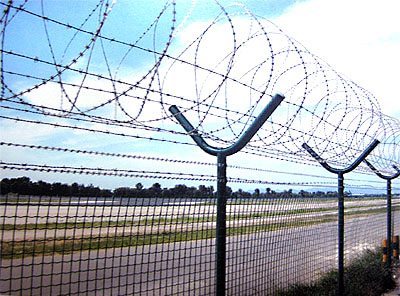

Razor barbed wire is widely used as protection fence.

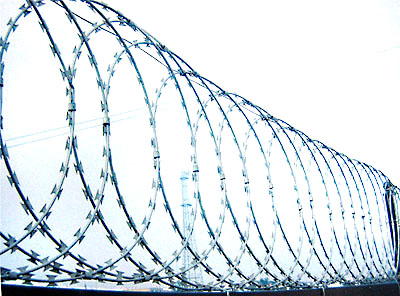

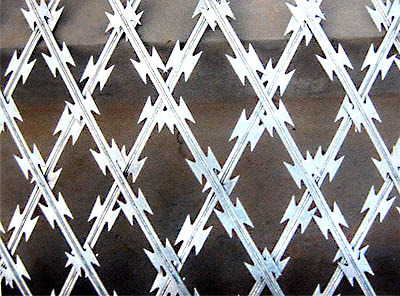

According to different way of installation, razor barbed wire fence can be classified into: spiral cross razor wire fence, single ring razor wire fence, flat razor wire fence, and straight type razor wire fence.

|
Specification
|
|
Razor Blade type and specification |
|
Razor code |
Blade type |
Blade thickness
(mm) |
Core wire diameter
(mm) |
Barb length
(mm) |
Barb width
(mm) |
Barb spacing
(mm) |
|
BTO-12 |
 |
0.5¡À0.05 |
2.5¡À0.1 |
12¡À1 |
15¡À1 |
26¡À1 |
|
BTO-15 |
|
0.5¡À0.05 |
2.5¡À0.1 |
15¡À1 |
15¡À1 |
33¡À1 |
|
BTO-22 |
|
0.5¡À0.05 |
2.5¡À0.1 |
22¡À1 |
15¡À1 |
34¡À1 |
|
BTO-30 |
 |
0.5¡À0.05 |
2.5¡À0.1 |
30¡À1 |
18¡À1 |
45¡À1 |
|
BTO-25 |
 |
0.5¡À0.05 |
2.5¡À0.1 |
25¡À1 |
16¡À1 |
40¡À1 |
|
CBT-60 |
 |
0.6¡À0.05 |
2.5¡À0.1 |
60¡À2 |
32¡À1 |
100¡À2 |
|
CBT-65 |
|
0.6¡À0.05 |
2.5¡À0.1 |
65¡À2 |
21¡À1 |
100¡À2 |
|
Standard Production Type |
|
Outsize diameter
(mm) |
Number of loops |
Standard length per coil (m) |
Type |
Notes |
|
450mm |
33 |
7-8m |
CBT-60, CBT-65 |
Single coil |
|
500mm |
56 |
12-13m |
CBT-60, CBT-65 |
Single coil |
|
700mm |
56 |
13-14m |
CBT-60, CBT-65 |
Single coil |
|
960mm |
56 |
14-15m |
CBT-60, CBT-65 |
Single coil |
|
450mm |
56 |
8-9m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
500mm |
56 |
9-10m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
600mm |
56 |
10-11m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
700mm |
56 |
10-12m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
800mm |
56 |
11-13m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
900mm |
56 |
12-14m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
960mm |
56 |
13-15m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
980mm |
56 |
14-16m |
BTO-12,15,22,30, CBT-65 |
Cross type |
|
Packing
|

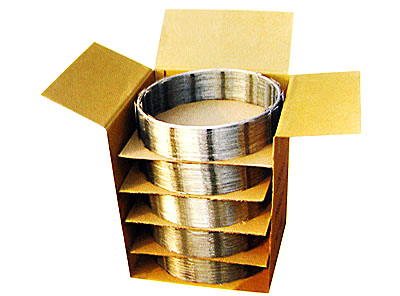

Each coil is packed with paper inside, and then packed with PP woven bag outside. Or coils are packed into carton.

|
|
